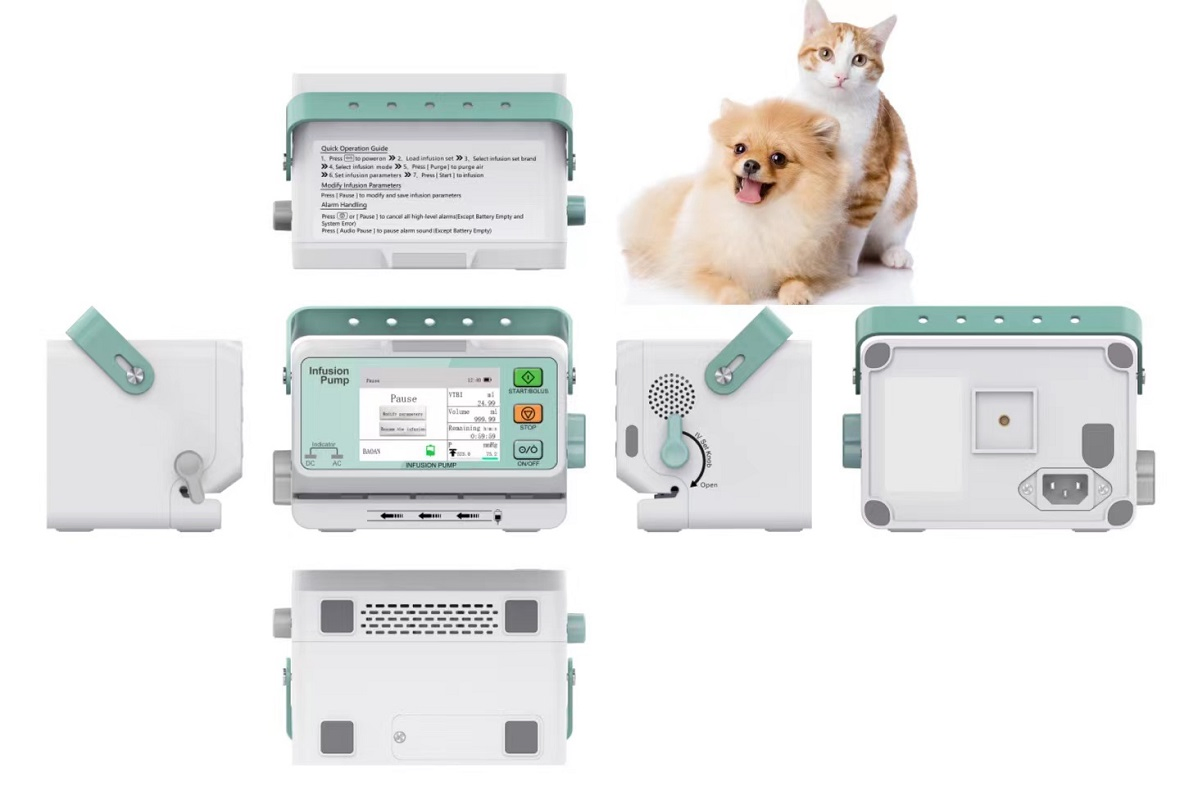

Veterinary-Instruments Portable Medical Analyzer Veterinary Infusion Pump for Vet

Send Inquiry

Product Description

📋

Model NO.

V10A

Power

100~240V

Battery

3000mAh, Working 8 Hours Above

Protection

IP34 Waterproof/Dustproof/Shockproof

Package

Wooden Package for Export

Specification

L165 × W103 × H100mm

Origin

China

HS Code

9018909911

🐾

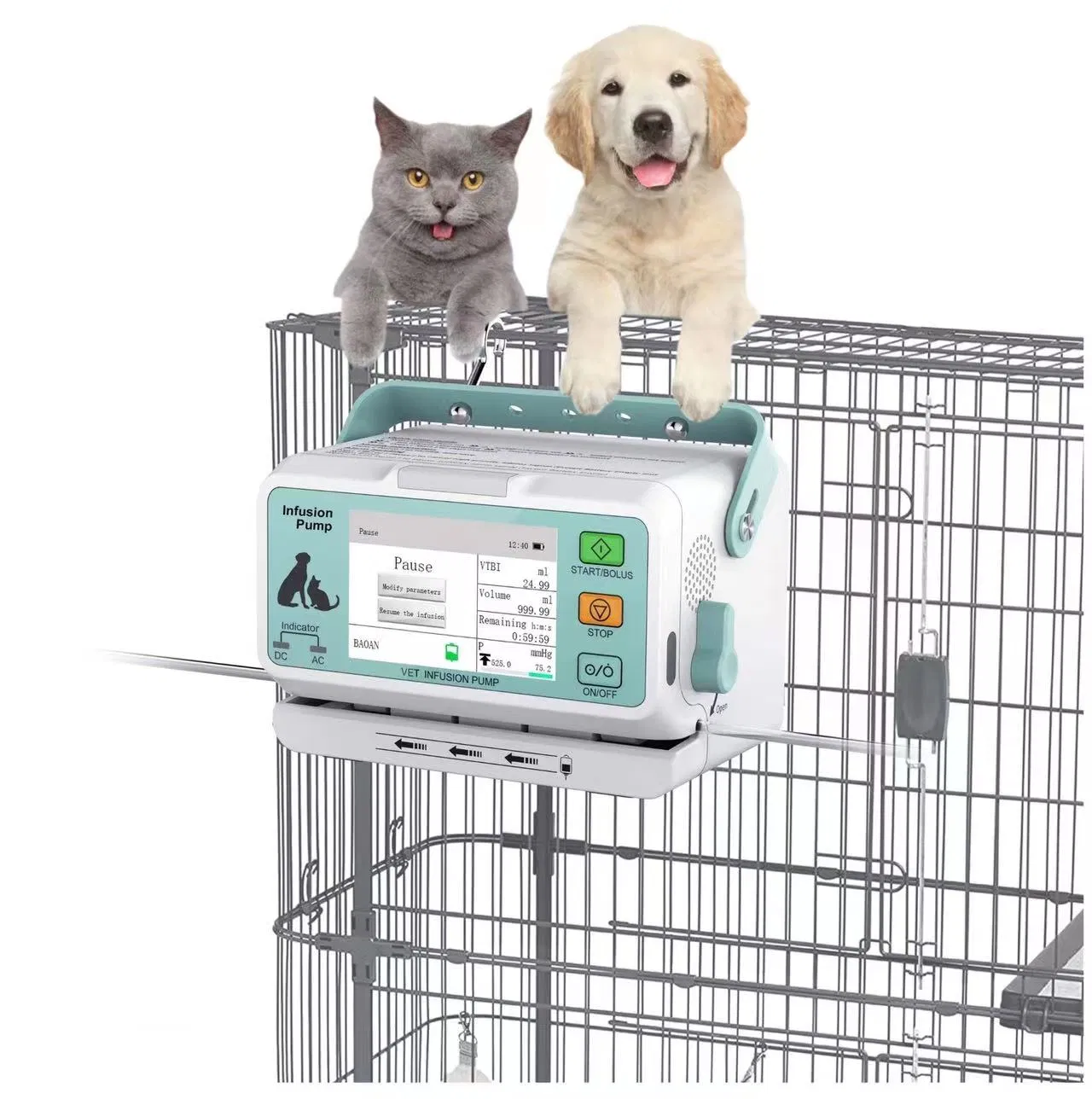

Veterinary-instruments portable medical analyzer veterinary infusion pump for vet

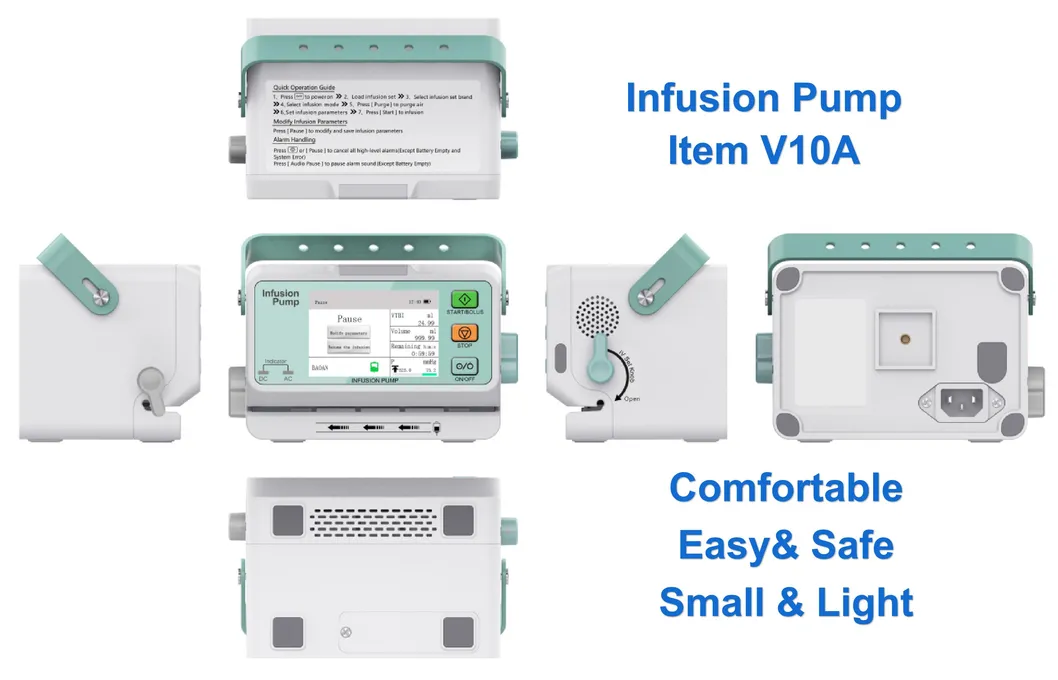

Model: V10A

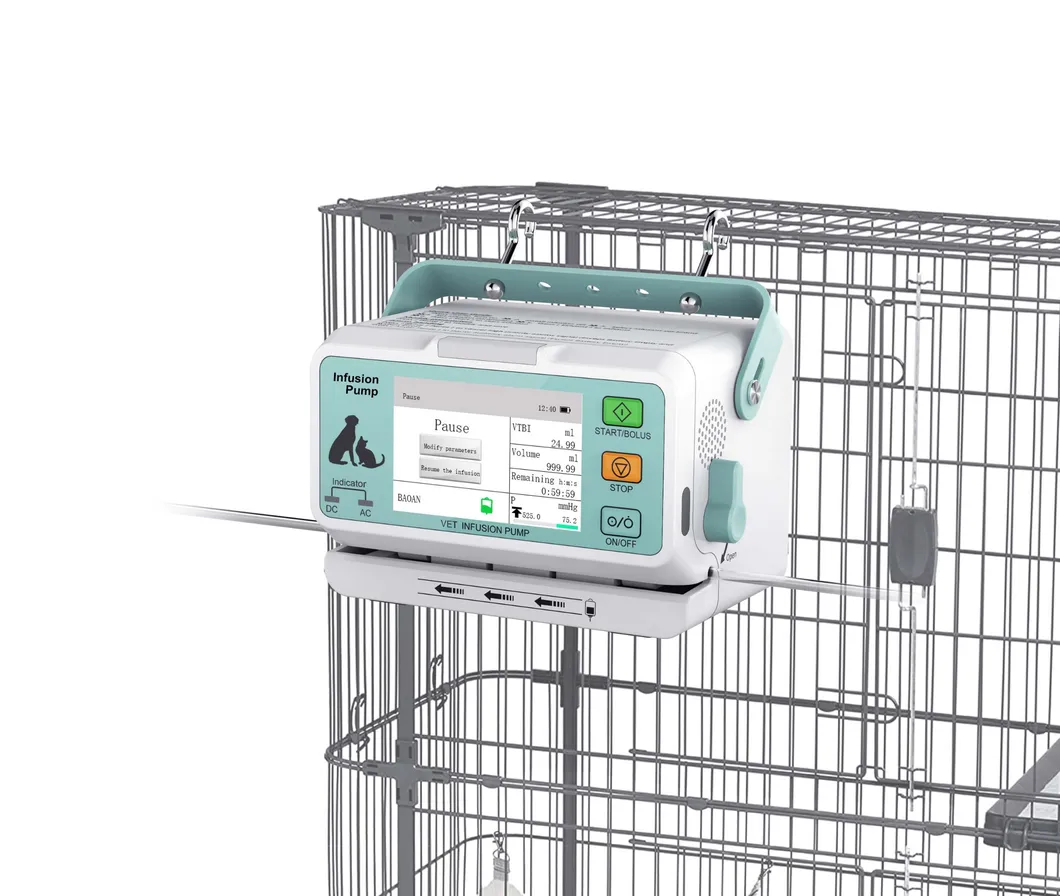

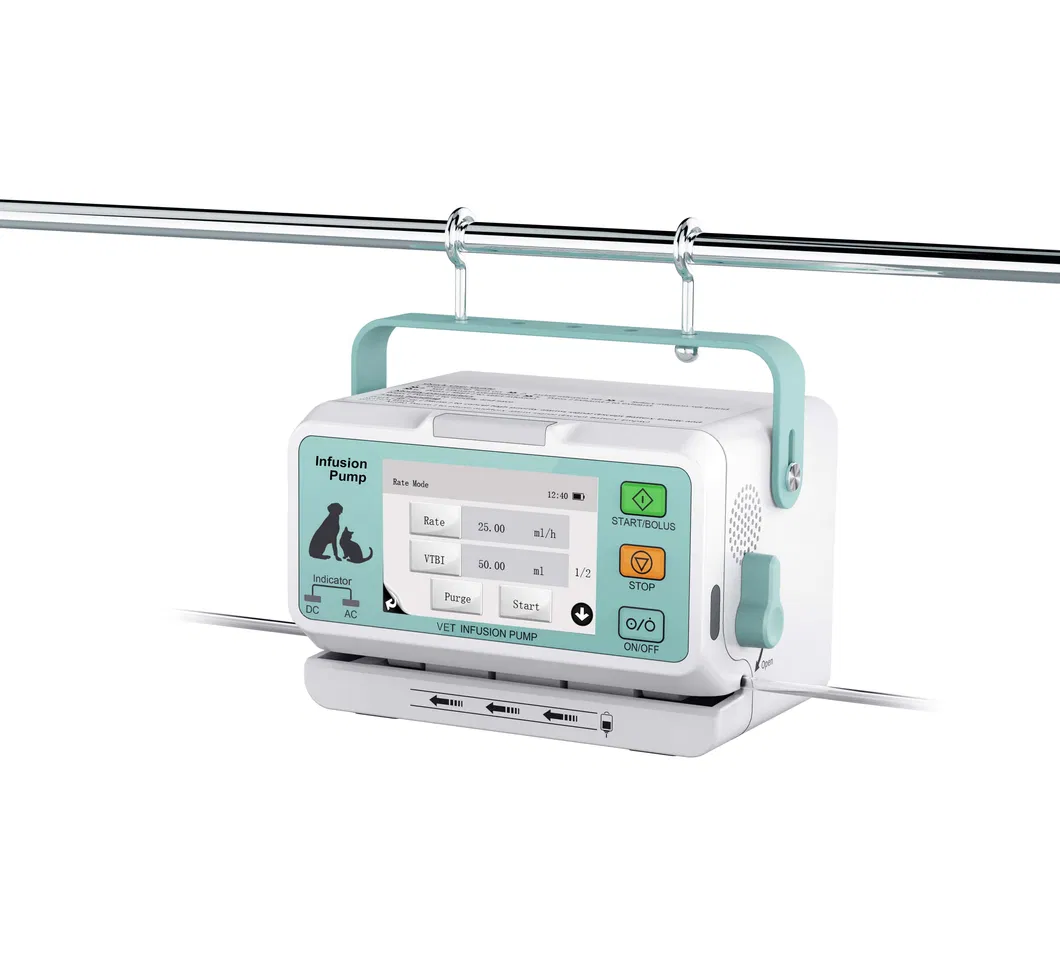

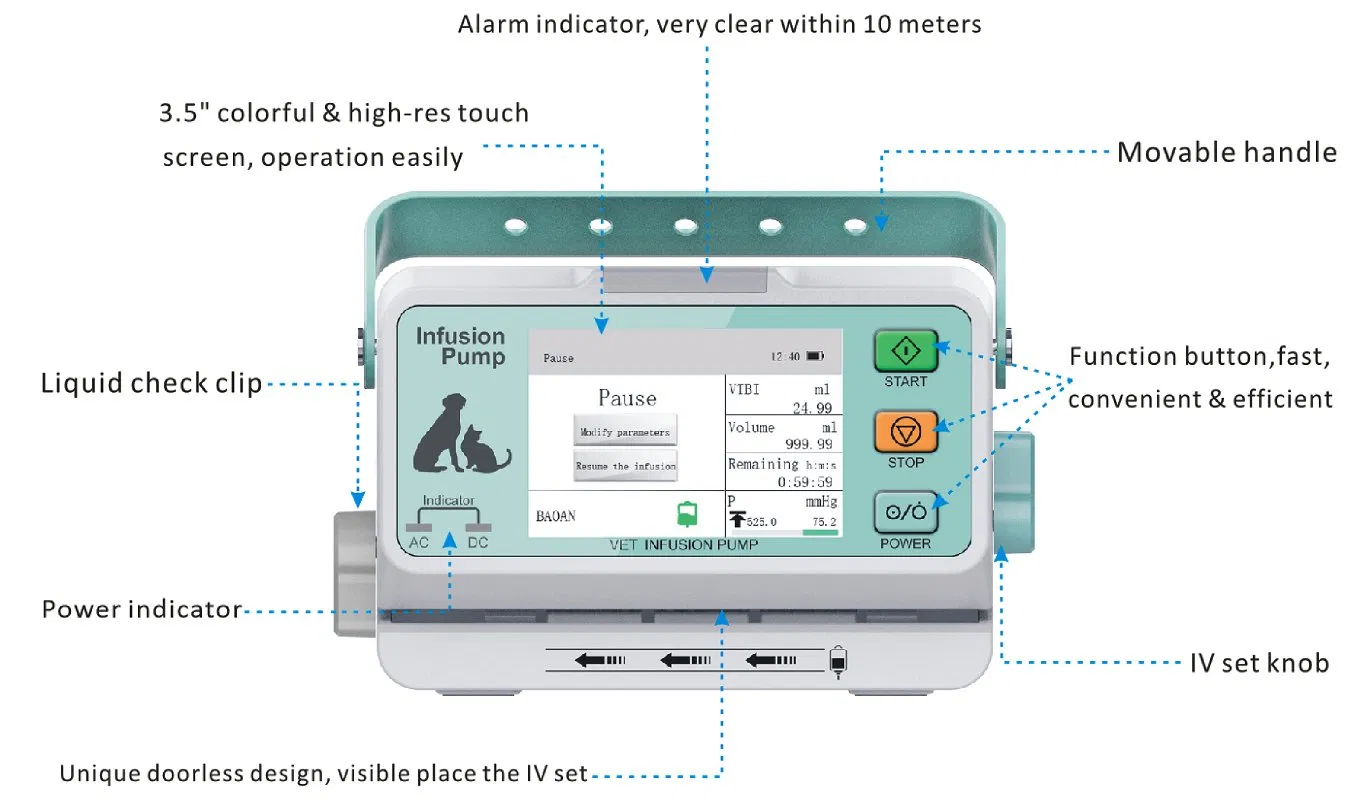

✔ 3.5" colorful touch screen, easy to operate with human-computer interface.

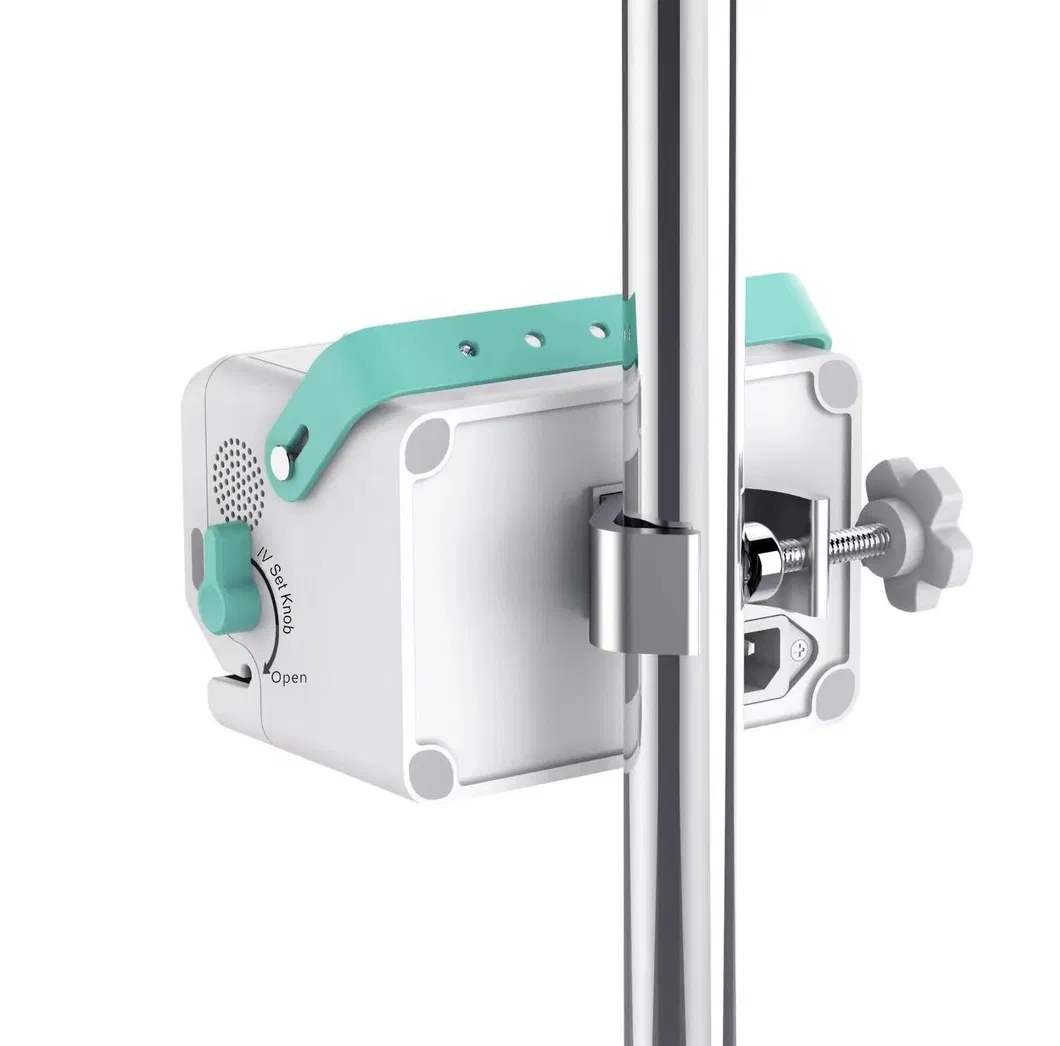

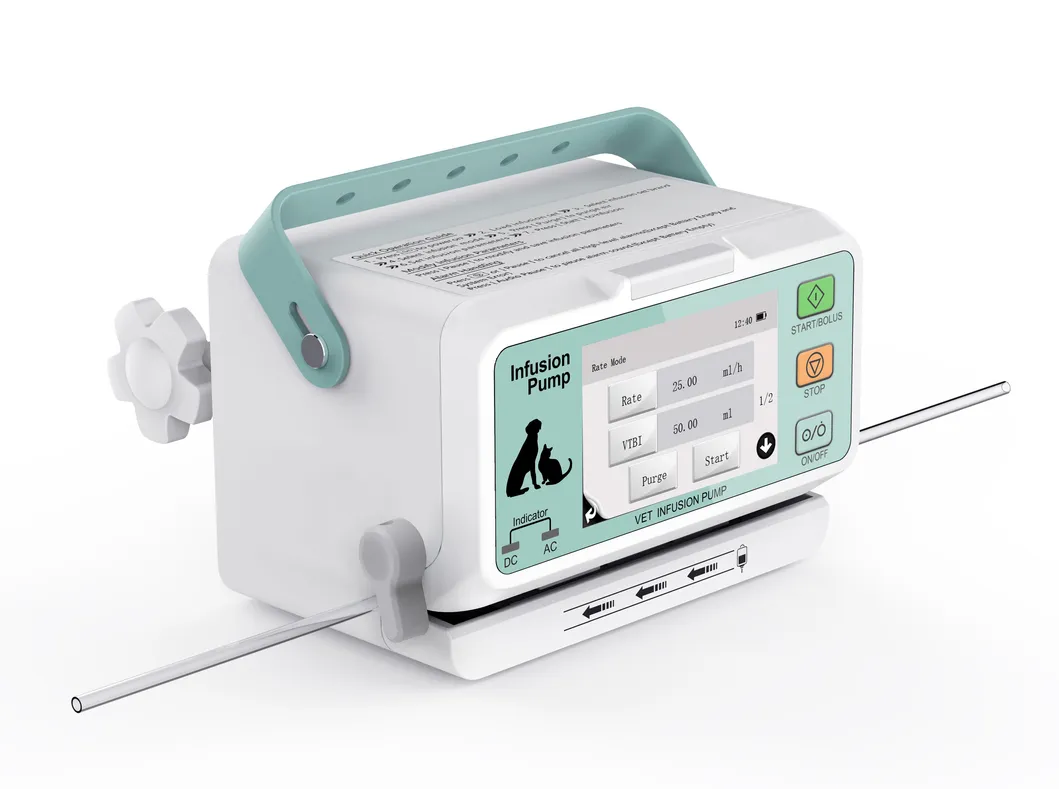

✔ Unique doorless design, visible place the IV set directly, dual CPU control.

✔ IP34 dustproof and waterproof design. AC/DC power, 2900 mAh Larger battery, long working time 8-10 hours.

✔ Reduce the bubbles error alarm because horizontal place the IV set design.

✔ Very Light weight only 1.3 KG, small and exquisite, convenient to carry and movable infusion.

✔ DPS dynamic pressure monitoring, real-time display of current pressure value.

✔ German high-end medical grade motor driver chip with silent technology (12dB).

✔ Independent 3 stage peristaltic device design for improved accuracy and life span.

✔ Multi-languages (Chinese/English/Spanish/Portuguese) with voice broadcast.

✔ 30 self-defined IV set brands and 34 units Drug library.

📸

📊

Parameter	Details
Model	V10A
Screen	3.5" Touch Screen
Size / Weight	L165 × W103 × H100mm / 1.3kg
Power Source	AC 100~240V / DC 12V~15V
Battery	3000mAh, 8+ hours at 25ml/h
Flow Rate Range	0.1~1200.00ml/h (0.01ml/h increment)
VTBI	0.0-9999.99ml
KVO Rate	0.1~5.0ml/h
Accuracy	±5%
Bubble Size	Adjustable 50/100/250/500/800 μl
History Record	2000+ entries
Alarm Types	Air in Line, Occlusion, Low Battery, VTBI Completed, System Error, etc.
